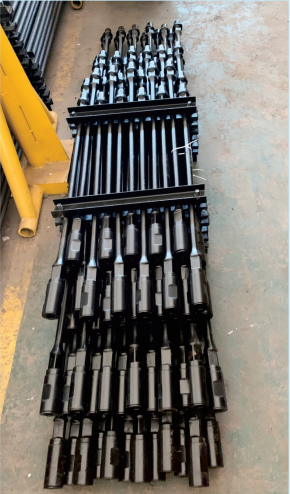

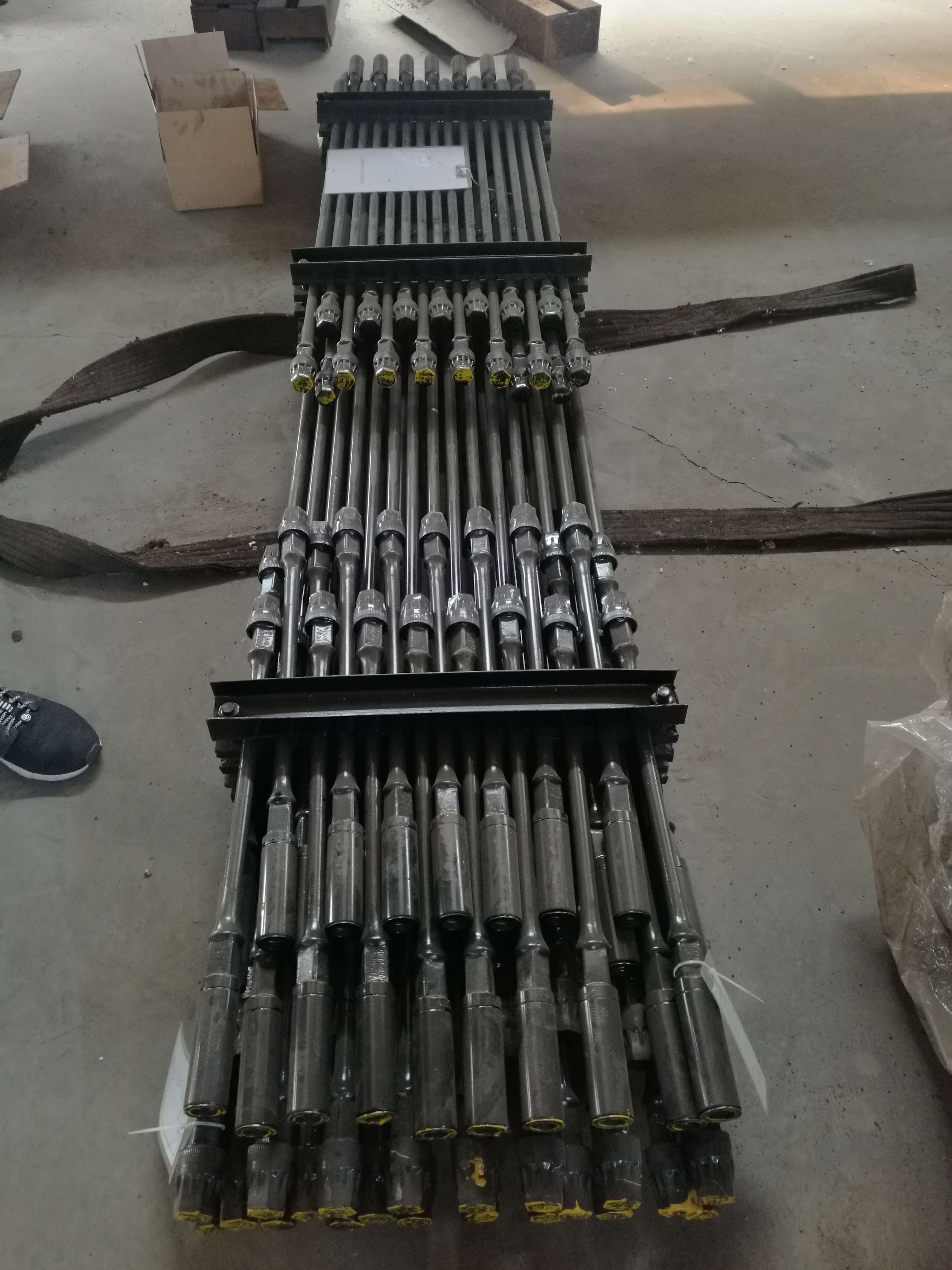

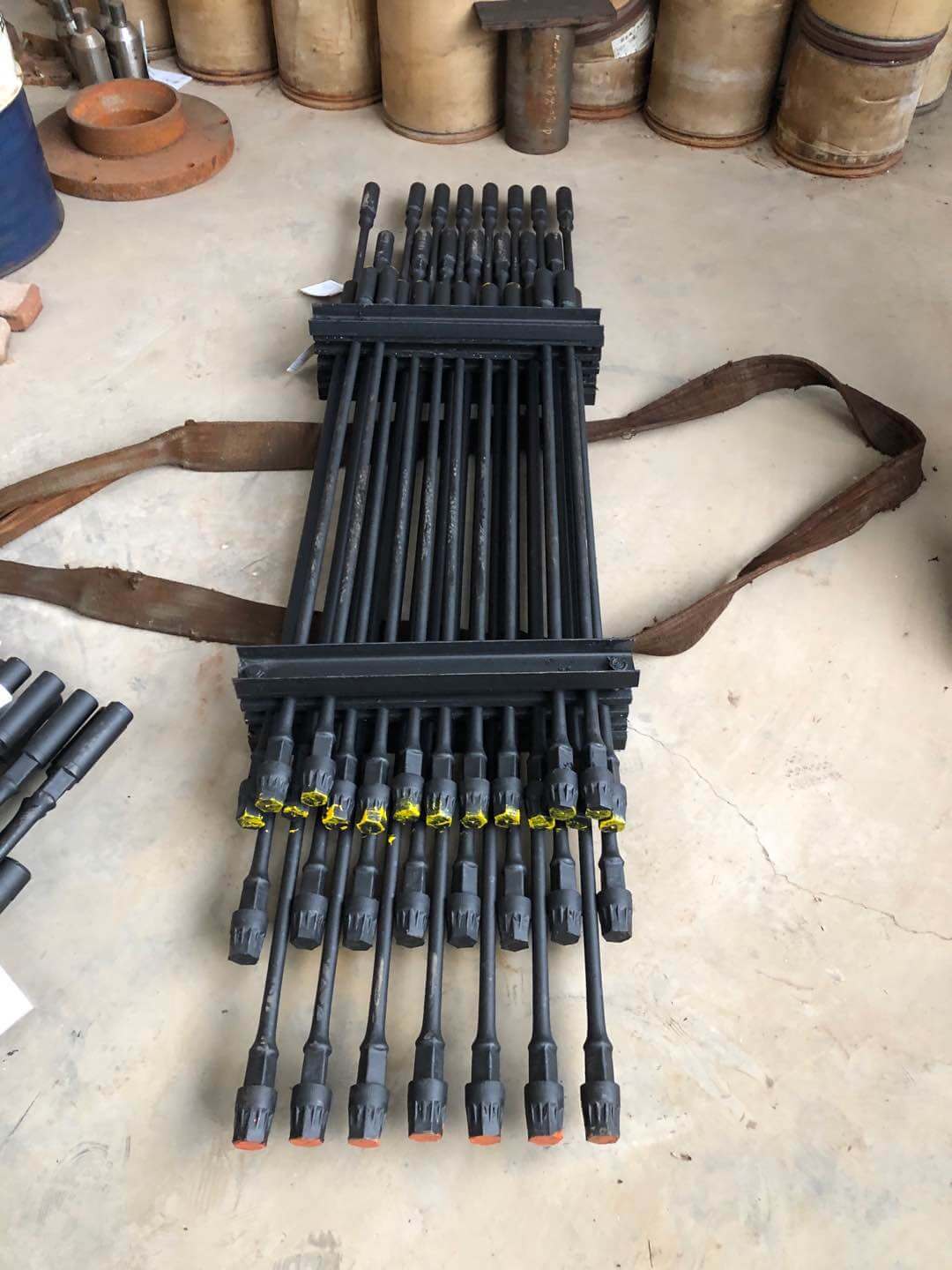

API 11B Pony Rod

share
WeChat
Sina Weibo
QQ
QQ space
Douban
Baidu Post Bar
SpecificationsDetail
No parameter data available.

1. Introduction of Pony rod

The Pony rods are used to adjust the length of sucker rod string in oil well.


2. Manufacturing specification: API 11B


3. Material

3.1. Chemical Composition

The chemical composition of steel sucker rods and steel   pony rods shall be any composition of AISI series steel , or equivalent ,listed in Table which can be effectively heat treated to the mechanical requirements of grades K.C. and D rods

               Chemical Composition of Pony Rods

Grade

Chemical composition

K

AISI 46XX series steel a

C

AISI 10XX series steel a

AISI 15XX series steel a

D carbon

AISI 10XX series steel a

AISI 15XX series steel a

D alloy

AISI 41XX series steel a

D special

Special alloy shall be any chemical composition that contains a combination of nickel, chromium , and molybdenum that total a minimum of 1.15% alloying content.

Or an equivalent in international series number steel.


3.2. Mechanical Properties

Mechanical Properties of Steel Rods and Pony Rods

Grade

Minimum Yield (0.2% offset)

Minimum Tensile

Maximum Tensile

psi

MPa

psi

MPa

psi

MPa

K

60,000

414

90,000

621

115,000

793

C

60,000

414

90,000

621

115,000

793

D

85,000

586

115,000

793

140,000

965
