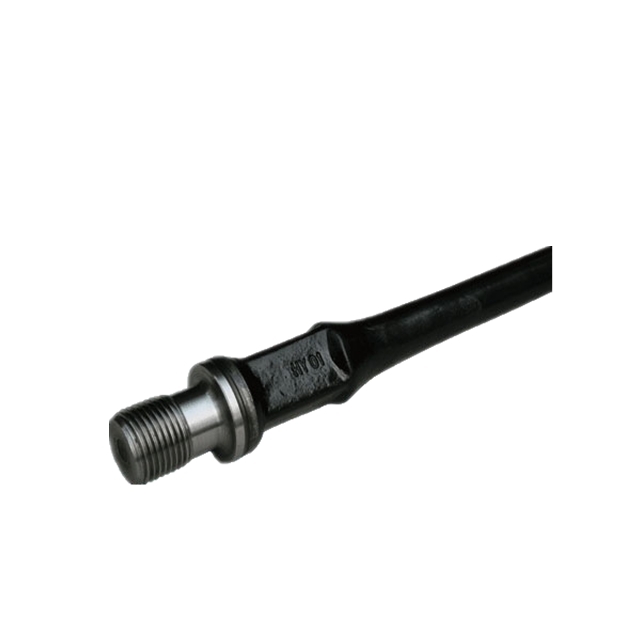

1. Introduction of Sucker rod
The Sucker rods are used to connect subsurface sucker rod pump and pump unite. We hold a international advanced upsetting production line with continuous upsetting in eight station, the rod connector has good forging structure and continuous metal streamline, which has high grain size and no overheating burnt, crack, pit, folding and other defects. Besides, it has good advantages of high accuracy forming, high liner degree, uniform organization performance, good corrosion resistance and stress rupture ability, which can preferably solve the problems of losing and unscrewing.
2. Manufacturing specification: API 11B
3. Material
3.1. Chemical Composition
The chemical composition of steel sucker rods and steel pony rods shall be any composition of AISI series steel , or equivalent ,listed in Table which can be effectively heat treated to the mechanical requirements of grades K.C. and D rods
Chemical Composition of Steel Sucker Rods
3.2. Mechanical Properties
Mechanical Properties of Steel Rods and Pony Rods
